Take High-Pressure Cleaning Deeper Into the Pipe

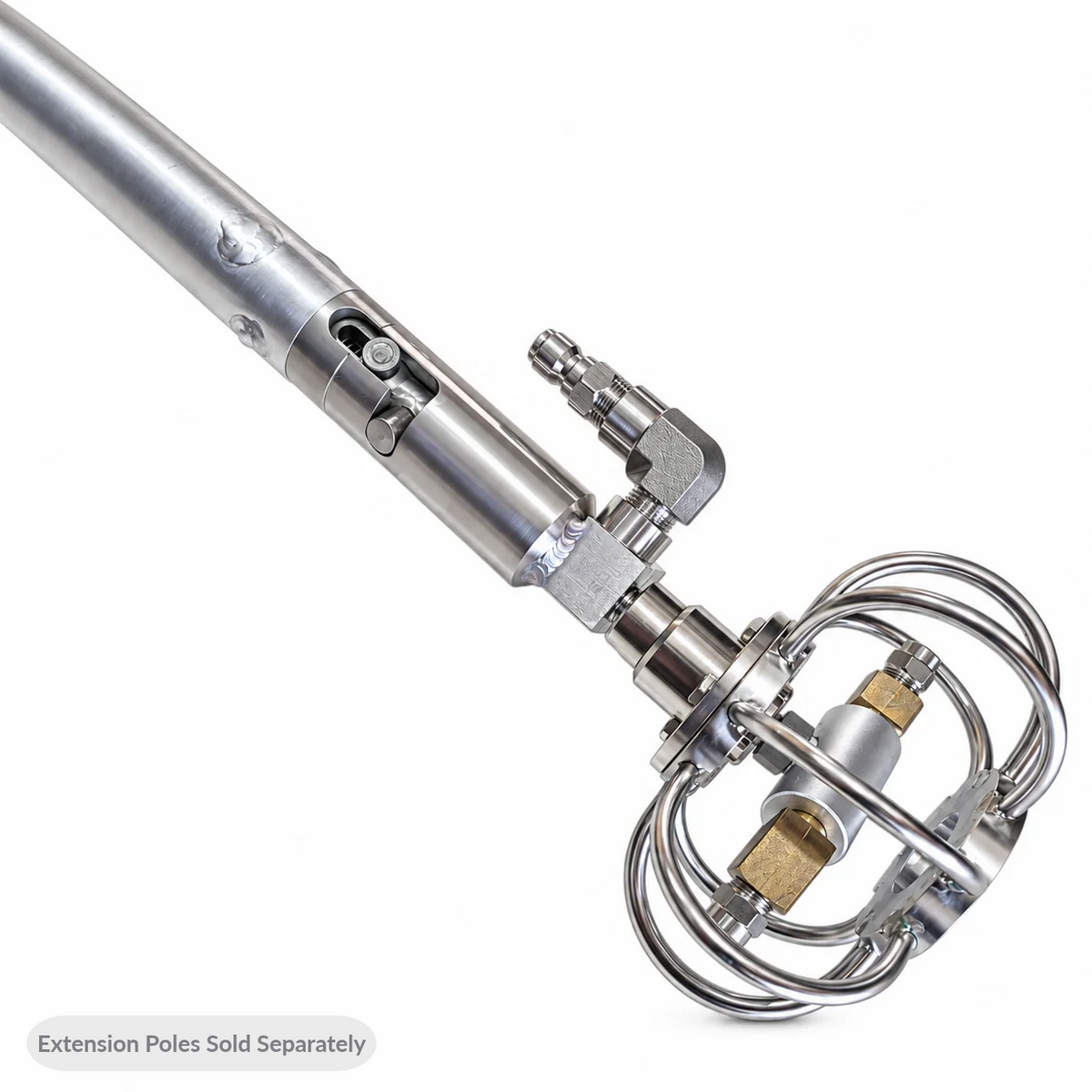

The Rotating Pipe Washer Attachment Kit combines a high-pressure rotating spray head with the reach of the Lonestar Modular Tool System.
The stainless steel attachment connects directly to Lonestar Modular Extension Poles, allowing the operator to advance the washer deeper into pipe, traps, meter runs, and other difficult-to-access areas while remaining outside the pipe opening.
A 6" rotating spray head uses two high-pressure nozzles to wash the interior surface as the pole assembly is pushed and pulled through the pipe. Designed for 6" inside diameter and larger applications.
Kit Includes
| Component | Qty. |
|---|---|
| Stainless Steel Lonestar Pipe Washer Attachment | 1 |

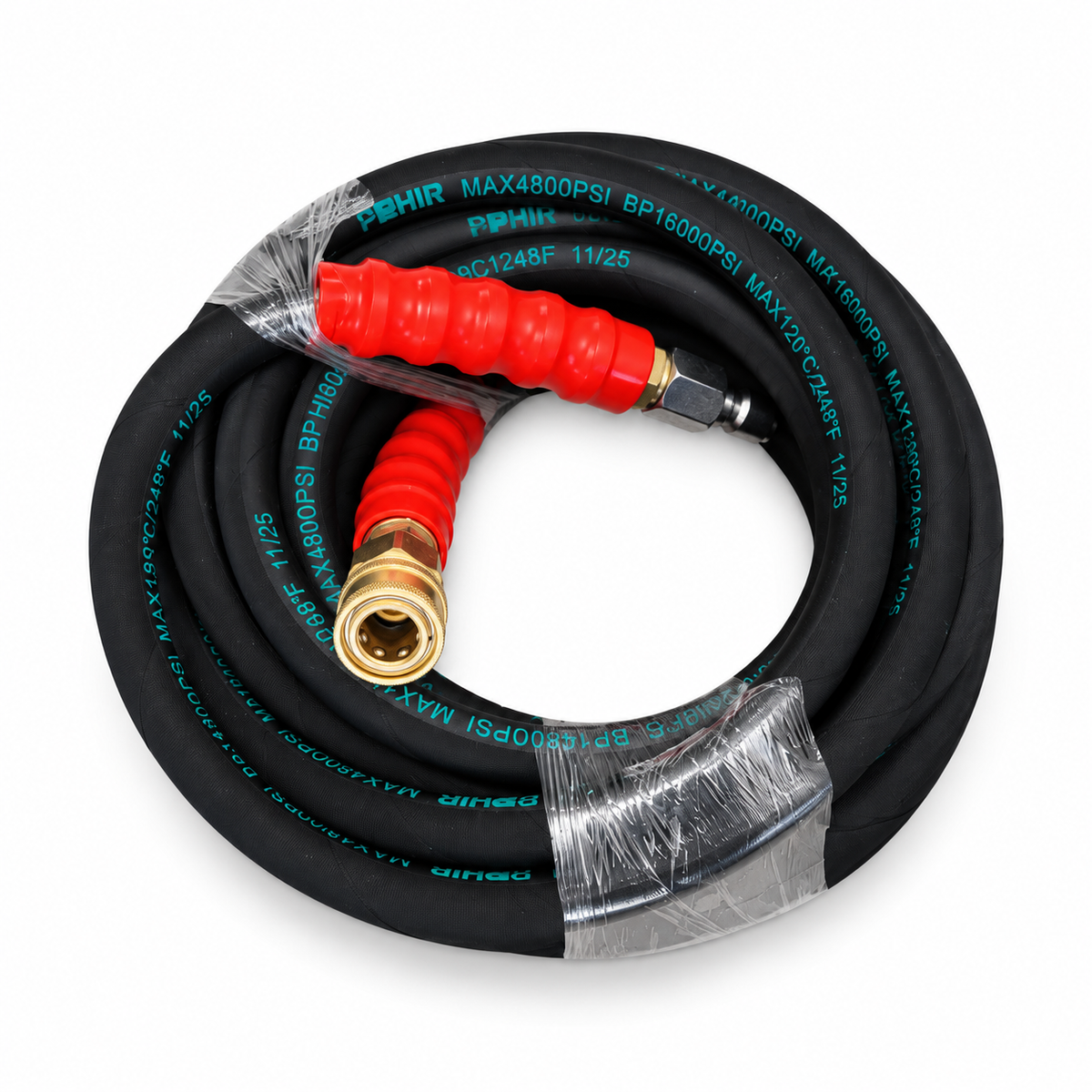

| 25' × 3/8" 4800 PSI Pressure Washer Hose with Quick Connects | 1 |

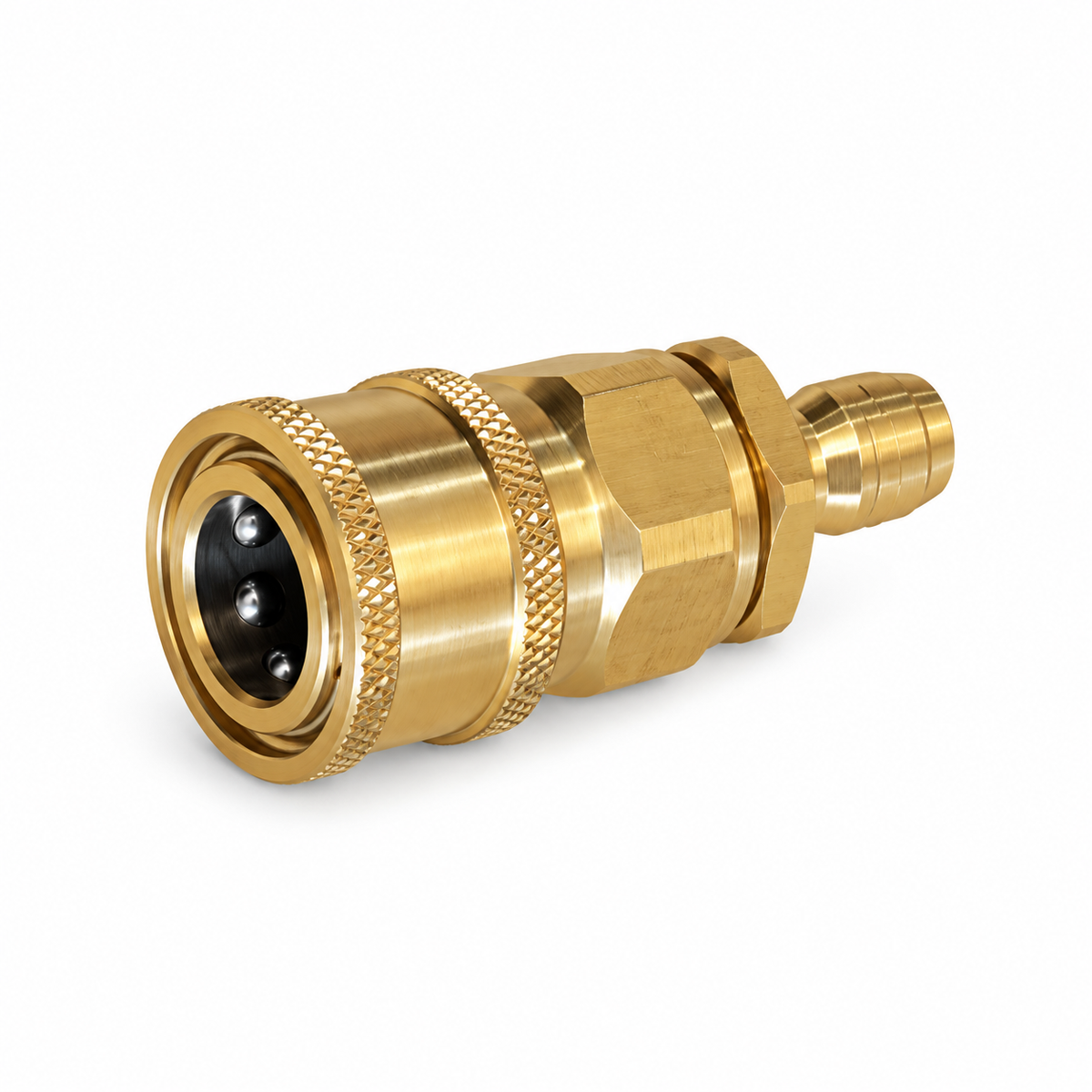

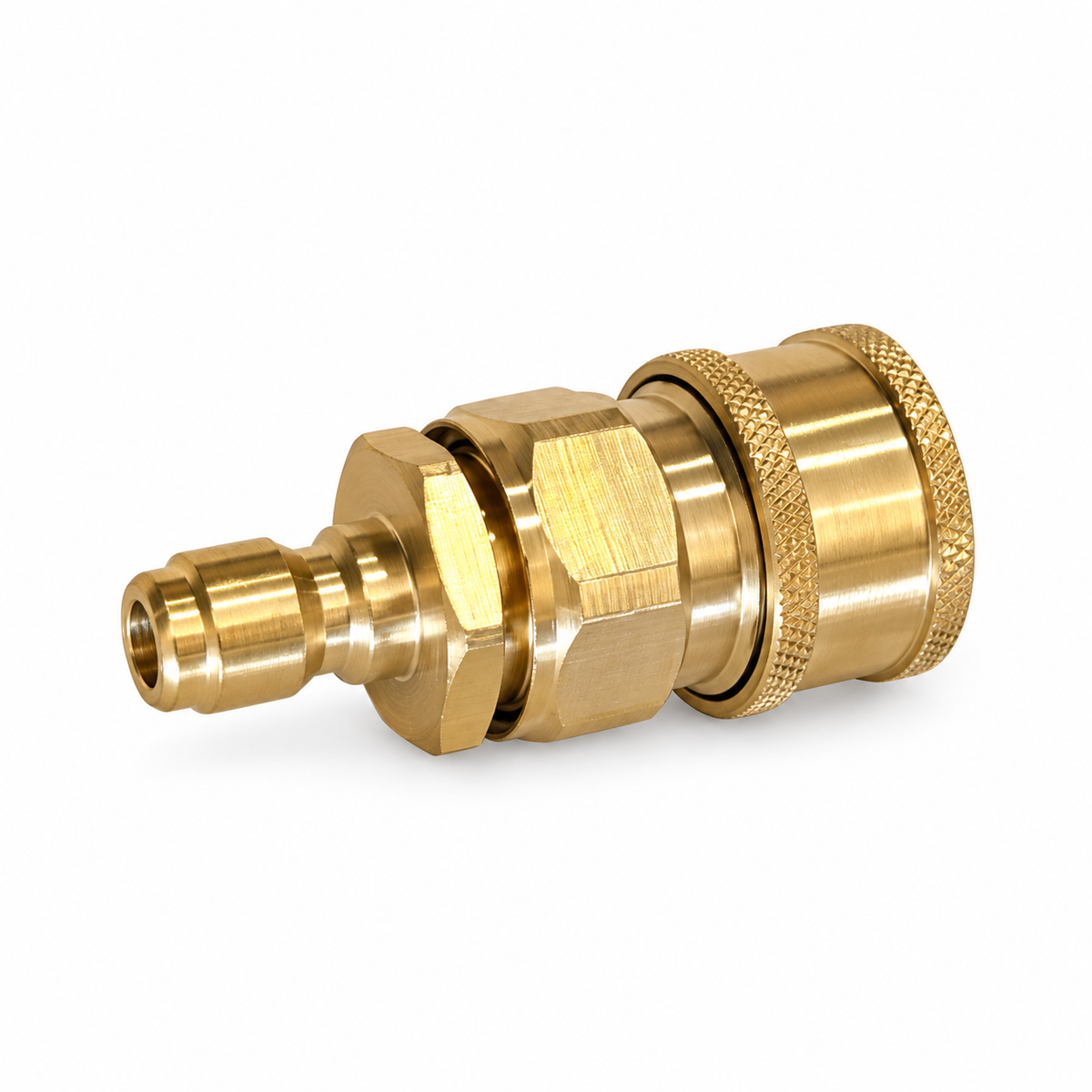

| 3/8" Female to 1/4" Male Quick-Connect Adapter | 1 |
| Triple Wheel Support (optional variant) | Add at checkout |
| Modular Extension Poles, Pressure Washer, Wand/Gun | Sold separately |
Connect. Extend. Clean.

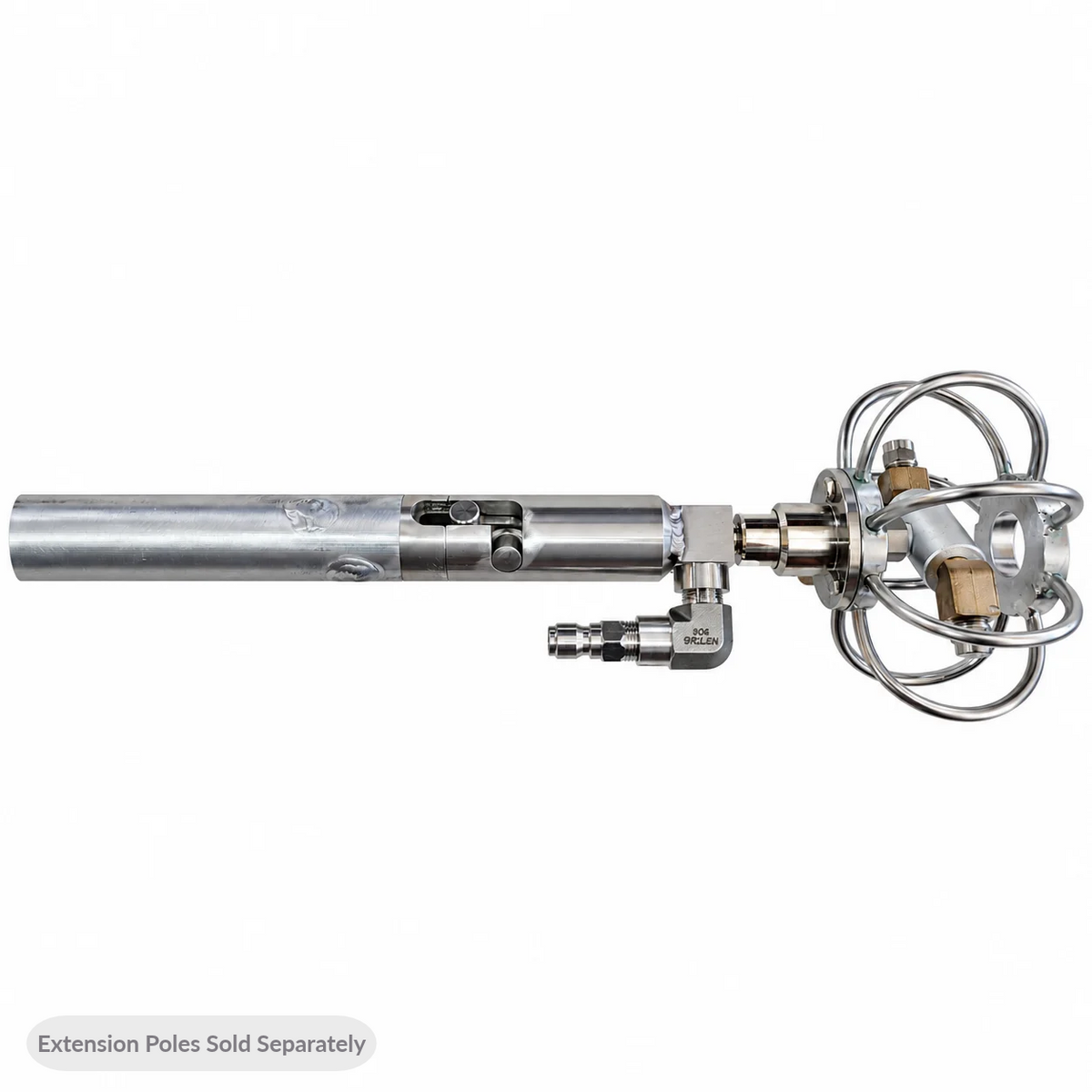

The Pipe Washer Attachment connects to the working end of a Lonestar Modular Extension Pole using the Lonestar Quick-Connect System. Additional Modular Extension Poles can be added as needed for greater reach.
-
01ConnectAttach the washer to the working end of a Modular Extension Pole with the Quick-Connect coupler. Run the included 25' pressure hose between the attachment and your pressure washer wand/gun using the included adapter.
-
02ExtendAdd Modular Extension Poles as needed to reach farther into the pipe, trap, or meter run while the operator stays outside the opening.
-
03CleanWater flow drives the rotating spray head. Two angled nozzles direct high-pressure water against the inside surface as the pole assembly is pushed and pulled through the pipe.
Key Features
Add Rolling Support for Longer Cleaning Runs
The Pipe Washer Kit is available with the Lonestar Triple Wheel Support as an optional configuration.
The Triple Wheel Support slides over a Modular Extension Pole and provides three rubber wheels that allow the pole assembly to roll more easily through the pipe. For larger-diameter applications, the support also helps position the washer closer to the center of the pipe, improving the consistency of the spray pattern around the interior circumference.
Because the pole remains free to rotate inside the support, the assembly retains rotational movement while being supported.
Minimum Output and Maximum Limits
| Requirement | Recommended Minimum | Maximum Operating Limit |
|---|---|---|
| Pressure | 1500 PSI | 3000 PSI at the spray head |
| Flow | 2 GPM | 10 GPM @ 3000 PSI |
| Water Temperature | — | 210°F |
360° Rotating Cleaning Action

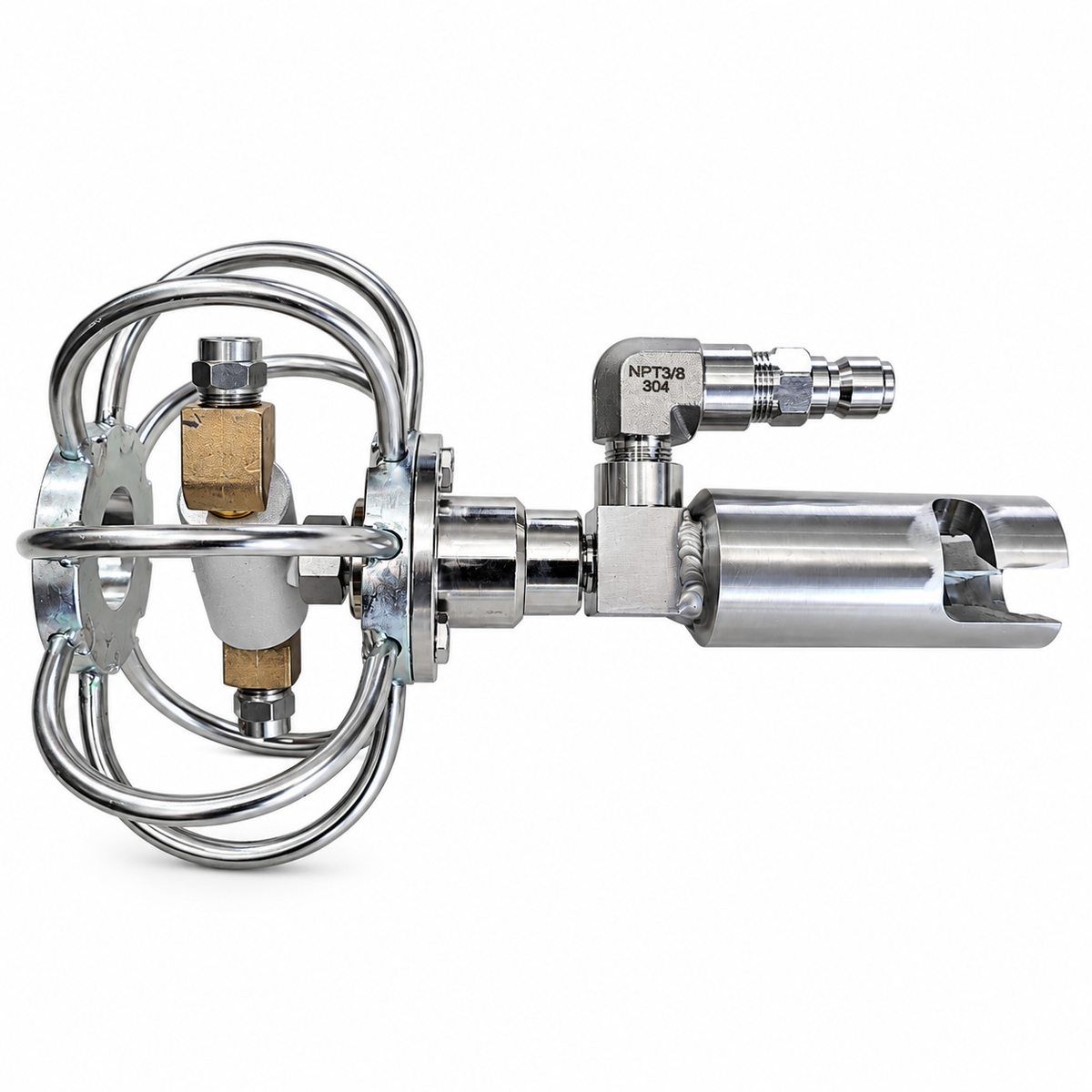

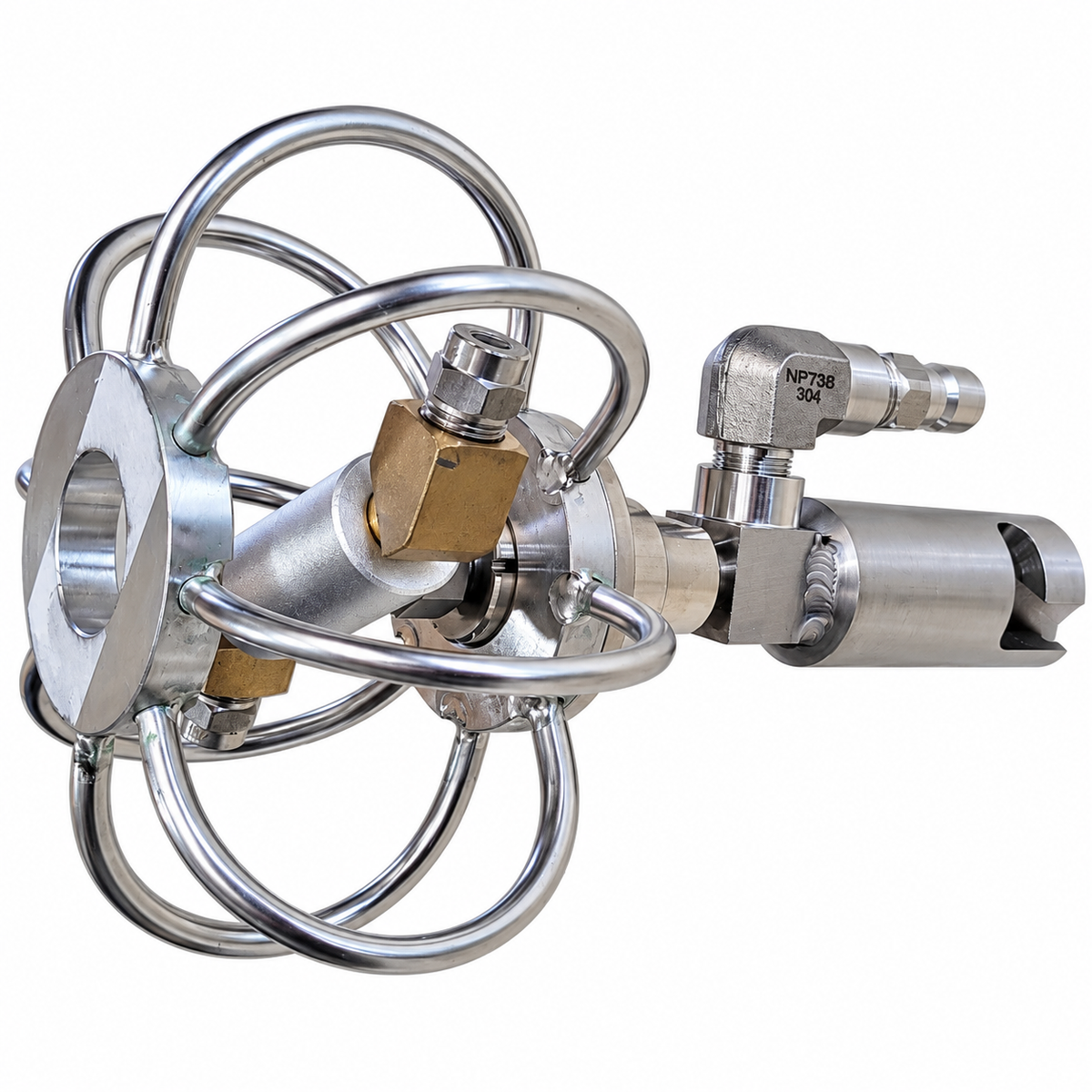

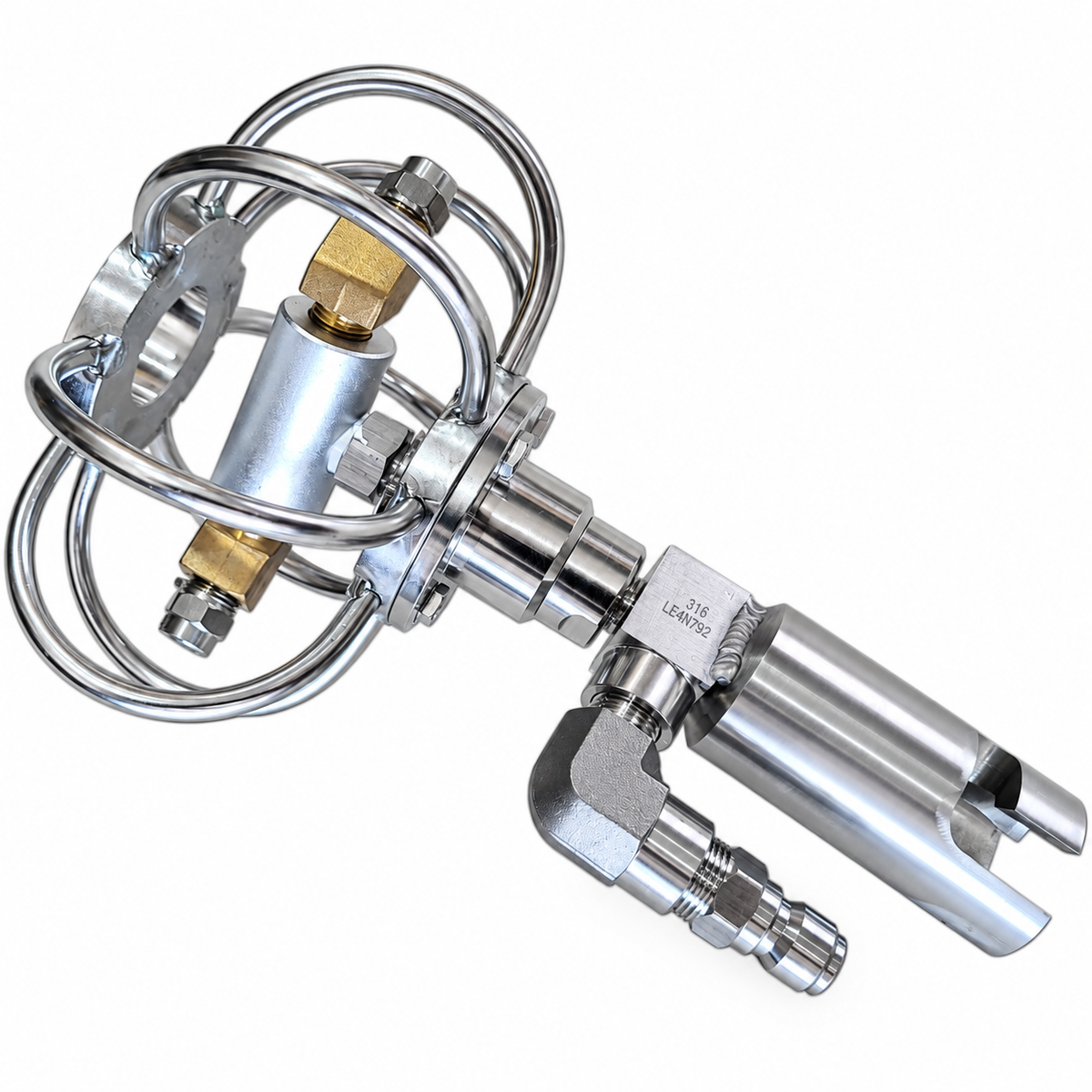

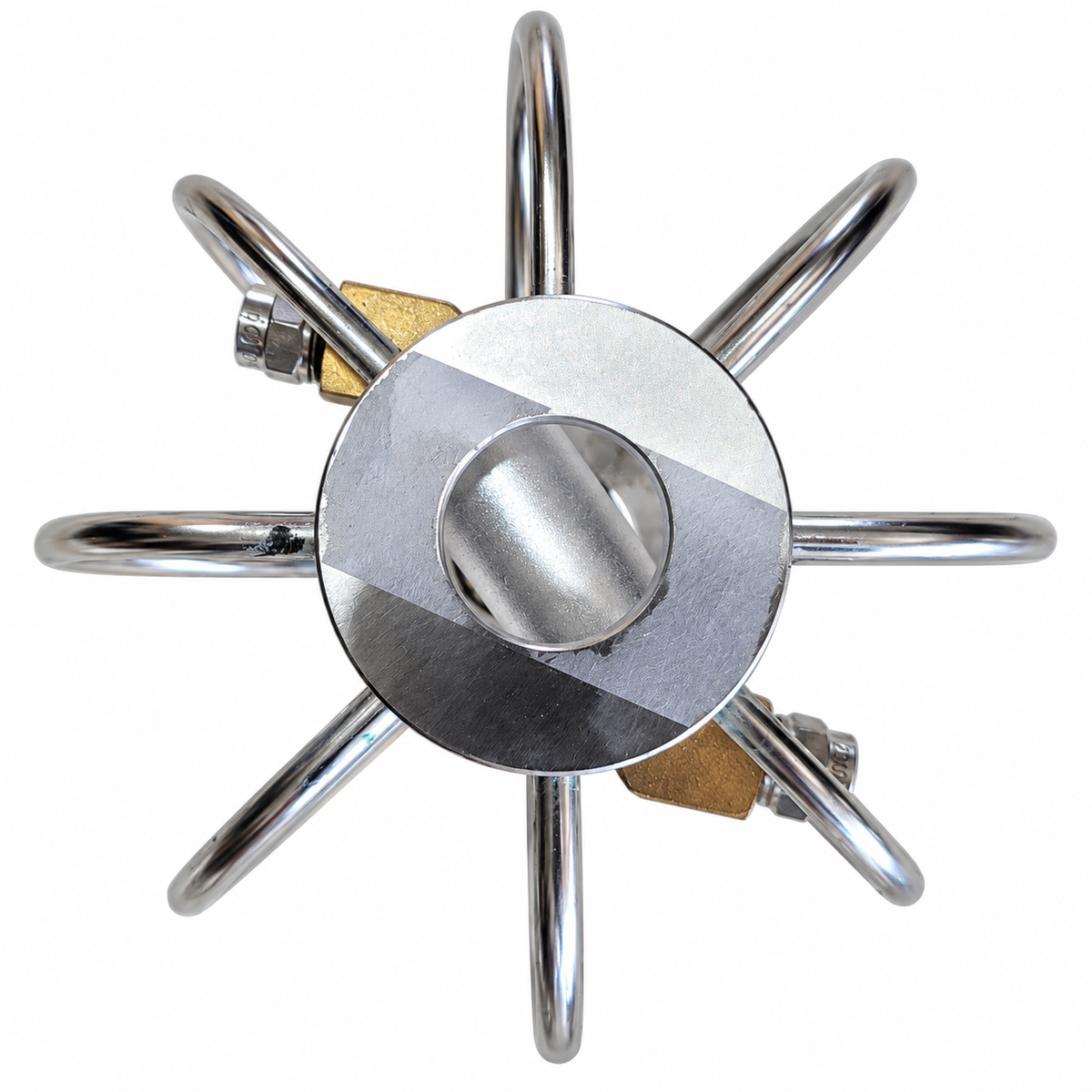

The 6" stainless steel spray head uses a rotating arm equipped with two angled nozzles. Water flow drives the rotary action, directing high-pressure spray around the inside circumference of the pipe as the attachment moves through the cleaning area.
Do not exceed 3000 PSI at the spray head. Operating pressure must never exceed the rating of the lowest-rated component in the connected system.
Spray Head Specifications
| Specification | Value |
|---|---|
| Spray Head Diameter | 6" |
| Construction | Stainless Steel |
| Number of Nozzles | 2 |
| Nozzle Configuration | 25° / 2.5 Orifice |
| Head Inlet | 1/4" Female |
| Maximum Working Pressure | 3000 PSI |
| Maximum Flow | 10 GPM @ 3000 PSI |
| Minimum Flow | 1.6 GPM @ 800 PSI |
| Maximum Water Temperature | 210°F |
Kit Specifications
| Specification | Value |
|---|---|
| Application | Internal Pipe Cleaning |
| Minimum Pipe ID | 6" |
| Attachment Construction | Stainless Steel |
| Attachment Overall Length | 10" |
| Attachment Weight | 6 lb |
| Spray Head Diameter | 6" |
| Hose Length | 25' |
| Hose Size | 3/8" |
| Hose Pressure Rating | 4800 PSI |
| Complete Base Kit Weight | 22 lb |
| Pole Connection | Lonestar Quick-Connect |
| Pressure Washer Required | Yes — Sold Separately |
| Extension Poles Included | No — Sold Separately |
| Triple Wheel Support | Optional |
| Maximum System Pressure at Spray Head | 3000 PSI |
| Lifting Use | Not Permitted |
Part of the Lonestar Modular Tool System
The Pipe Washer Attachment uses the same Lonestar Quick-Connect interface as the rest of the modular system.
Choose the number and length of Modular Extension Poles required for the job, connect the washer attachment to the working end, and add additional sections as needed to extend the cleaning reach.
For longer assemblies, the optional Triple Wheel Support can be positioned farther back on the pole to help support and guide the assembly through the pipe.
Built in Texas
Lonestar Integrity Rotating Pipe Washer Attachment Kits are manufactured and assembled in Texas with an all-stainless attachment body.
Important Use Notice
Cleaning / Push-Pull Use Only — Not for Lifting. The Rotating Pipe Washer Attachment Kit and all Lonestar Integrity modular tool components are not designed, rated, or intended for lifting, hoisting, overhead handling, personnel support, or supporting suspended loads.
High-Pressure Water Warning: High-pressure water can cause serious injury. Keep personnel clear of the spray head and discharge area during operation. Do not operate the rotating spray head outside of an appropriate enclosed cleaning area. Inspect hoses, fittings, quick connects, and components before each use and follow all pressure washer manufacturer operating and safety instructions.
