Full Pulling Capability in a More Compact Package
The Compact Pulling Kit combines the core components needed to build a versatile Lonestar pulling assembly while keeping individual pole sections under 48" long for easier storage and transport.
Three 46" Modular Extension Poles provide up to 138" of pole-section length while fitting more easily inside many job boxes, truck toolboxes, and other compact storage areas.
A stainless steel Slim Single Hook provides the working end for engaging ropes, cables, and pull points on foam pigs, ILI tools, and similar equipment. The Shackle Pull Tab installs on the opposite end to provide a connection point for equipment-assisted pulling.

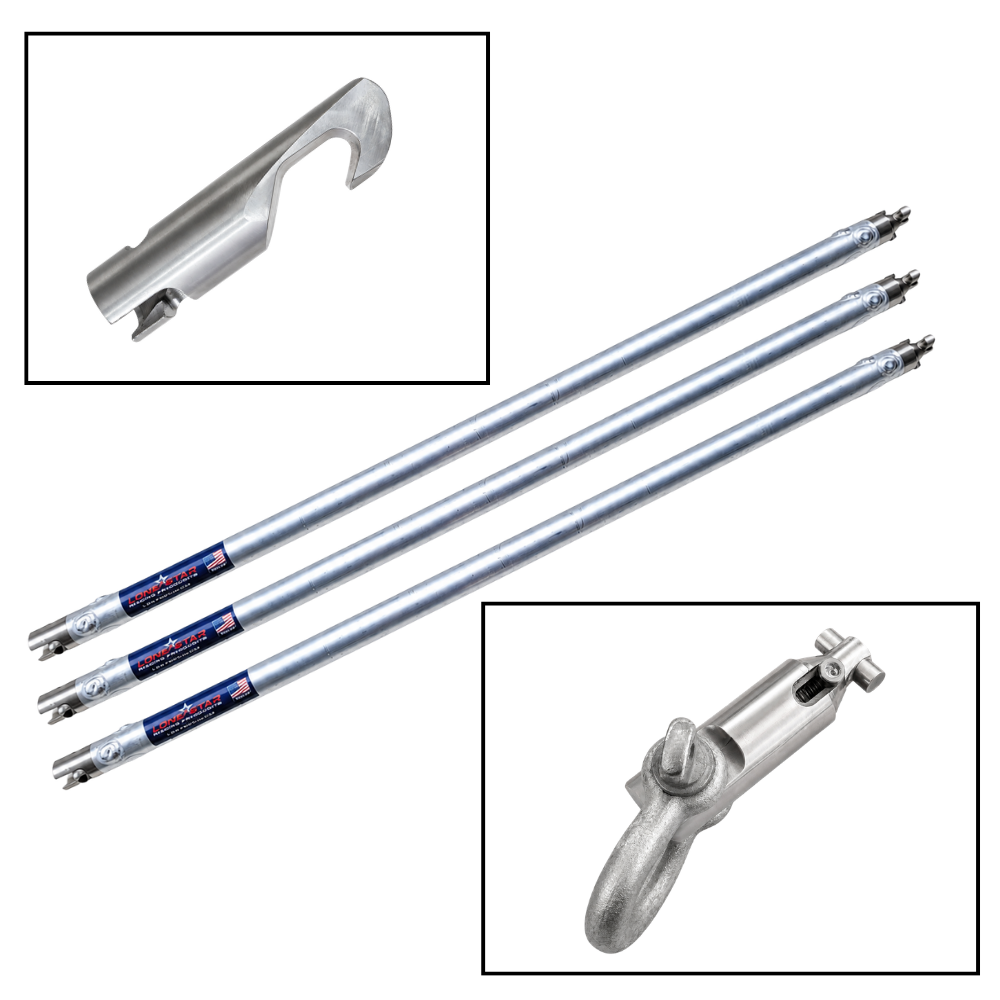

Kit Includes
46" Modular Extension Pole
Heavy-wall 1.5" OD × .250" wall 6061 aluminum with 304 stainless Quick-Connect ends. Under 48" for easier job-box and truck storage.
Slim Single Hook Attachment
304 stainless steel. Slim profile for engaging ropes, cables, and pull points on foam pigs, ILI tools, and similar equipment.
Pull Tab Attachment with Shackle
Stainless steel shackle configuration. Connection point for a sling when equipment-assisted pulling is required.
Easier to Store. Easy to Expand.
The 46" pole sections are specifically designed to remain under 48" overall length, making them easier to store in many common job boxes and truck toolboxes.
Using three individual sections also gives the operator more flexibility to configure the assembly length for the job. Use one, two, or all three pole sections depending on the reach required.
Key Features
Start With the Kit. Configure It for the Job.
Every component in the Compact Pulling Kit is part of the Lonestar Modular Tool System.
Add additional extension poles for more reach or replace the Slim Single Hook with a Dual Hook, Quad Hook, Filter Hook, Push Plate, or another compatible attachment as the application changes.
Compact vs. Extended Reach Pulling Kit
| Feature | Compact Pulling Kit | Extended Reach Pulling Kit |
|---|---|---|
| Pole Sections Included | 3 | 2 |
| Pole Length | 46" each | 75" each |
| Total Pole-Section Length | 138" | 150" |
| Storage | More Compact | Longer Sections |
| Number of Pole Connections | More | Fewer |
| Hook | SS Slim Single Hook | SS Slim Single Hook |
| Pull Tab | Shackle | Shackle |
Compact Storage, Flexible Reach
Choose the Compact Pulling Kit when storage and shorter individual sections are the priority.
Choose the Extended Reach Pulling Kit when you want more reach per section and fewer pole connections.
Kit Specifications
| Component | Key Specification |
|---|---|
| Extension Poles | 46" overall length, 5.625 lb each |
| Pole Construction | 6061 Aluminum, 1.5" OD × .250" wall |
| Pole Connections | 304 Stainless Steel |
| Slim Single Hook | 304 Stainless Steel, 1.6875 lb |
| Pull Tab | Stainless Steel, Shackle Configuration |
| Connection System | Lonestar Quick-Connect |
| Intended Use | Pulling |
| Lifting Use | Not Permitted |
Built in Texas
Every component in the Lonestar Integrity Compact Pulling Kit is manufactured and assembled in Texas.
Important Use Notice
Pulling Use Only — Not for Lifting. The Compact Pulling Kit and all included Lonestar Integrity components are designed for controlled pulling applications only. They are not designed, rated, or intended for lifting, hoisting, overhead handling, personnel support, or supporting suspended loads.
The shackle connection is provided for equipment-assisted pulling only and does not make the pole system suitable for lifting or suspended-load applications.
